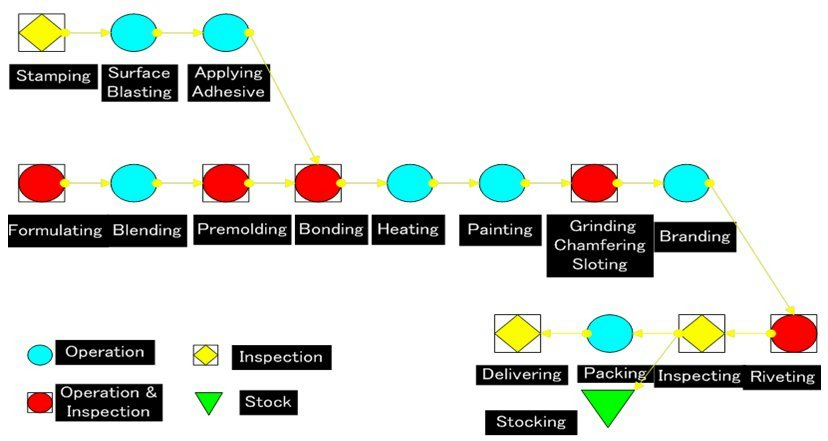

Handling of the Backing Plate
Step B1 - Stamping of the Backing Plate
Stamp the backing plate form high-grade steel into the exact design shape to fit vehicle caliper.
Step B2 - Surface Blasting
Roughen the surface of backing plate for increasing the adhesion to avoid material breaking
away from the backing plate.
Step B3 - Applying the Adhesive to the Surface
Apply the adhesive to the backing plate and get ready to bond the friction materials.
The Main Process
Step A1 - Formulating the Raw Materials
Each brake pad contains several friction materials of the highest quality for better performance
and long life.
Step A2 - Blending the Friction Materials
Blend the materials to meet the detailed formulations so that the performance of the brake pad
will be extended widely.
Step A3 - Molding the Materials
Mold the unique formulations under extreme temperatures and pressure into the shape of bricks.
Step A4 - Bonding
Bond firmly the friction materials to the backing plate under immense heat and pressure.
Step A5 - Heating
Heat the unfinished pads in the heating processor for 8 ~ 10 hours to the everlasting attachment.
Step A6 - Painting
Painting embellishes the appearance of the brake pads and protects them from rust and corrosion.
Step A7 - Grooving, Chamfering and Grinding
With the lathe of triple foundations- grooving, chamfering and grinding, it not only reduces brake noise
for quieter operation but also improves friction levels.
Step A8 - Branding
Branding our unique brand and accurate part number ensures that the right pad is fit in the right car.
Step A9 - Riveting
Riveting sensors can exactly tell drivers when their pads are worn below safe limits.
Step A10 - Inspecting
Meticulously check on the finished brake pads before packing to ensure the safety of products.
Step A11 - Packing
After shrink-wrapping, each brake pad set is singly packed in a cardboard to assist with storage,
transportation and the sale of the products.
Step A12 - Storing
Storing the products in our own warehouse makes certain our endlessly sufficient supply.
